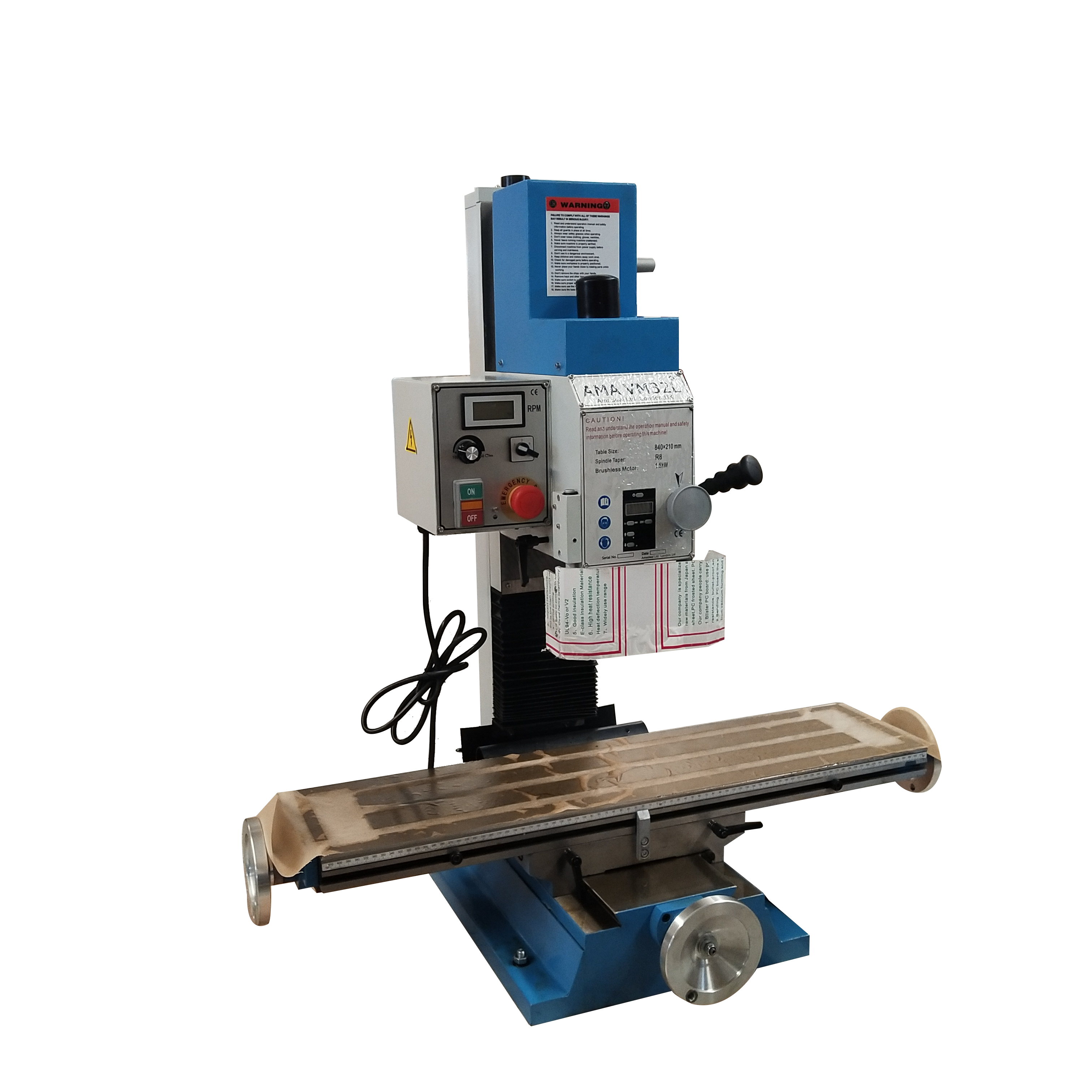

VM32L MT3 Belt Drive & Brushless Motor

Now AVAILABLE AT - LOW PRICES !

FEATURES:


Variable speed.Spindle is supported by high precision taper roller bearing.Single speed belt drive allows quiet and easy operation. Mill head can be tilted ±90° .Precision manual fine down feed.Easy reading scale has satin chrome finish.Bigger table provides more capacity.Dovetail column,base & worktable with adjustable taper gibs.

Max. drilling capacity: 30mm
Max. end milling capacity: 20mm
Max. face milling capacity: 76mm
Table size: 840x210mm
Table travel (X,Y): 580x200mm
T-slot: 3x14mm
Spindle taper: MT3
Spindle stroke: 70mm
Step of spindle speeds: Variable
Range of spindle speeds: 100-2250rpm
Spindle incline angle: ±90°
Distance from spindle to column: 190mm
Distance from spindle nose to table: 470mm
Distance from spindle to the column :180mm
Brushless Motor: 1.5kw
Machine Size: 1000x710x1020mm
Packing size: 1050x740x770x1150mm
Net weight: 240kg
