Timing Belt for Mini Lathe that accepts 90 teeth belt! This is the main drive belt for the mini lathes that are an imitation of our CJ18A mini lathe range. Width: 9.5mmApproximate length: 425mm90 TeethCompatible with metal pulleys
The motor pulley made for this belt can be found here:METAL Motor Pulley

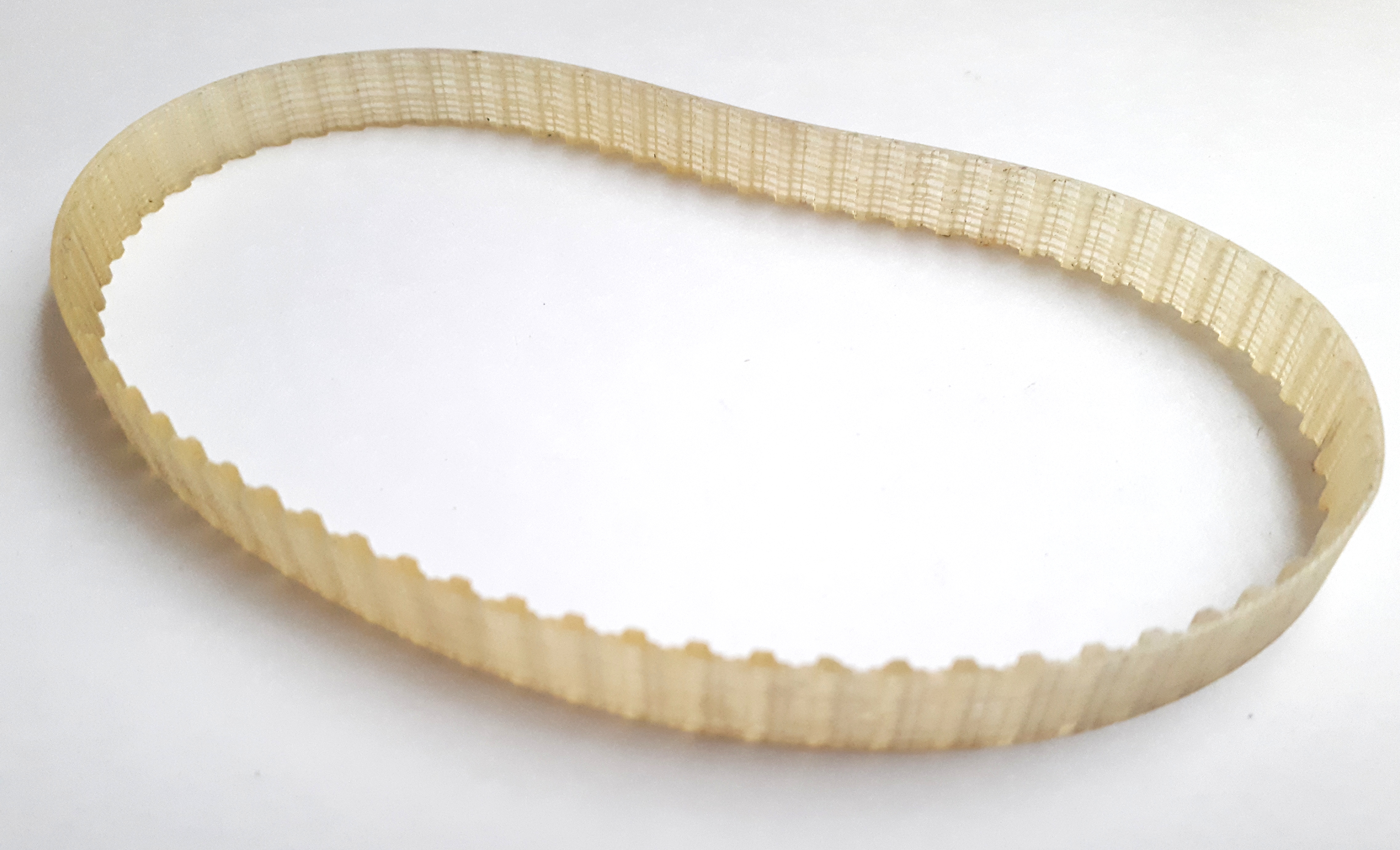

Made from flexible neoprene backing, fiberglass tensile cord as reinforcement. Fits Harbor Freight BV-920 9"x20" and many other Metal Lathes.This timing belt can be used in many differnet applciations such as Vacum Cleaners, Lawn Rakers, Scarifiers, Lawn Mowers and Food Processors. Pitch Length: 17.00 inch 431.8mmNo of Teeth: 85Belt Width: 12.7mm 1/2"Tooth Pitch: 5.080mm 1/5"Tooth Height: 1.27mmBelt Thickness: 2.30mm
BRAND NEW Polymax V-Belt 5M710 MetricFits 9x20 lathes such as the CJ06235-M-710710mm LongPolymax V-Belt 5M710 Metric**REPLACEMENT BELT*** BELT ONLY *
Click for more...

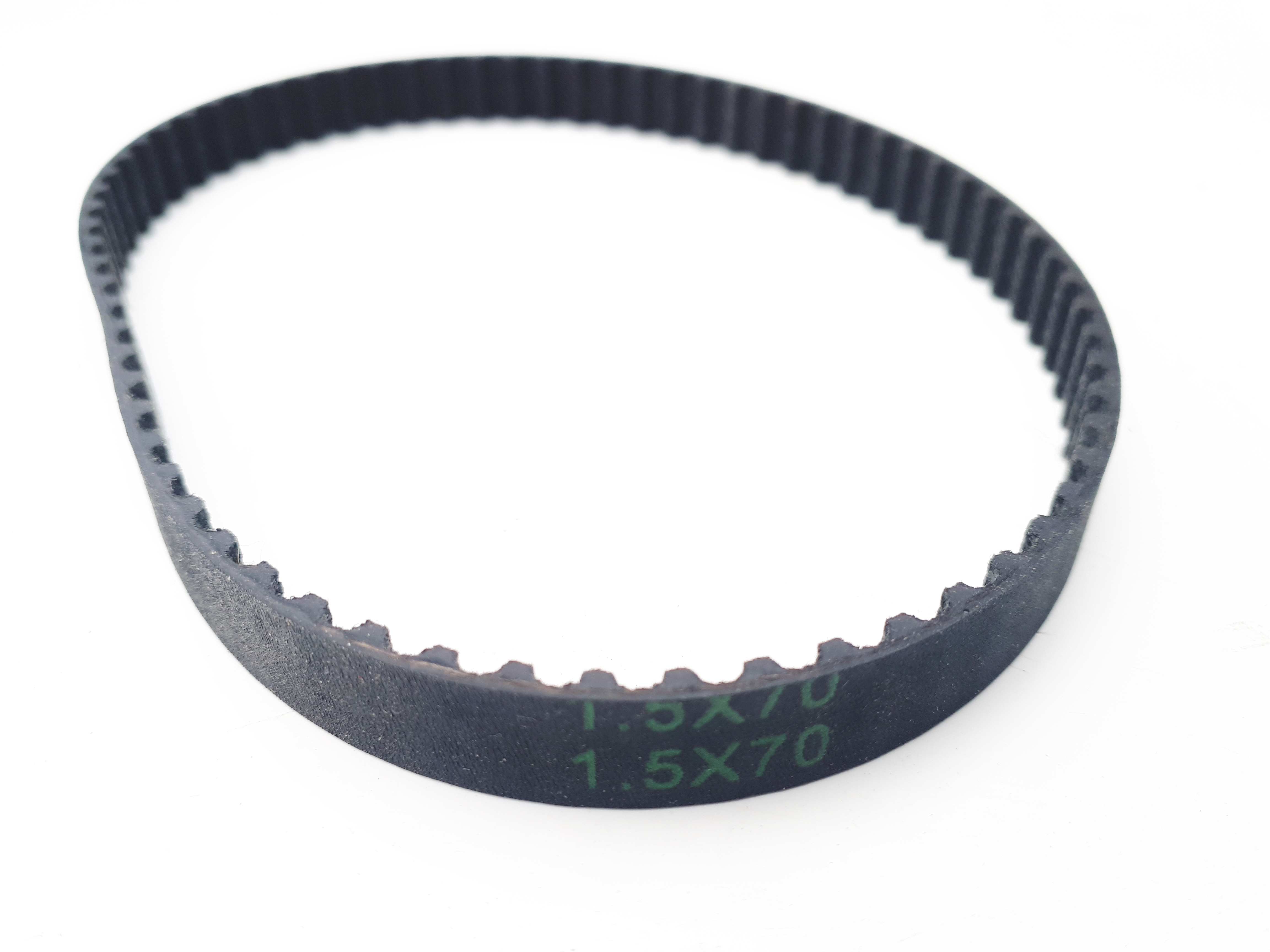

Mini lathe drive timing belt.This is the main drive belt for the mini lathe.Wdith: 9.80mmMarked 1.5x70 and has 70 cogsApproximate length of belt: 330mmCan also be used on: Warco mini lathe CJ 0618.PLEASE NOTE THAT THIS BELT WOULD NOT BE COMPATIBLE WITH THE METAL PULLEYS.
