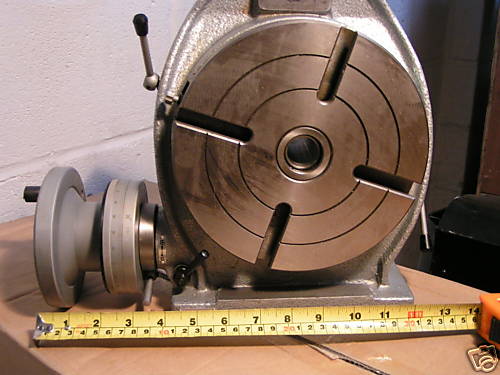

High Precision 8" Horizontal & Vertical Rotary Table

This is a high quality precision rotary table ideal for work requiring precision and accuracy.

Features:
Extra deep coolant channel
Dual positive action locks
Gear ratio 90:1
Graduated 360degrees
Low profile
Satin chrome dials
10 second vernier reading

Specification - Maximum Variation (inces/second):
Clamping surface flatness - 0.0006"
Cylindrical central bore concentricity - 0.0008"
Taper centre bore concentricity - 0.0008"
Surface to base parallelism - 0.0008"
Surface to angle face squareness - 0.0004"
Surface to centre slot squareness - 0.0008"
