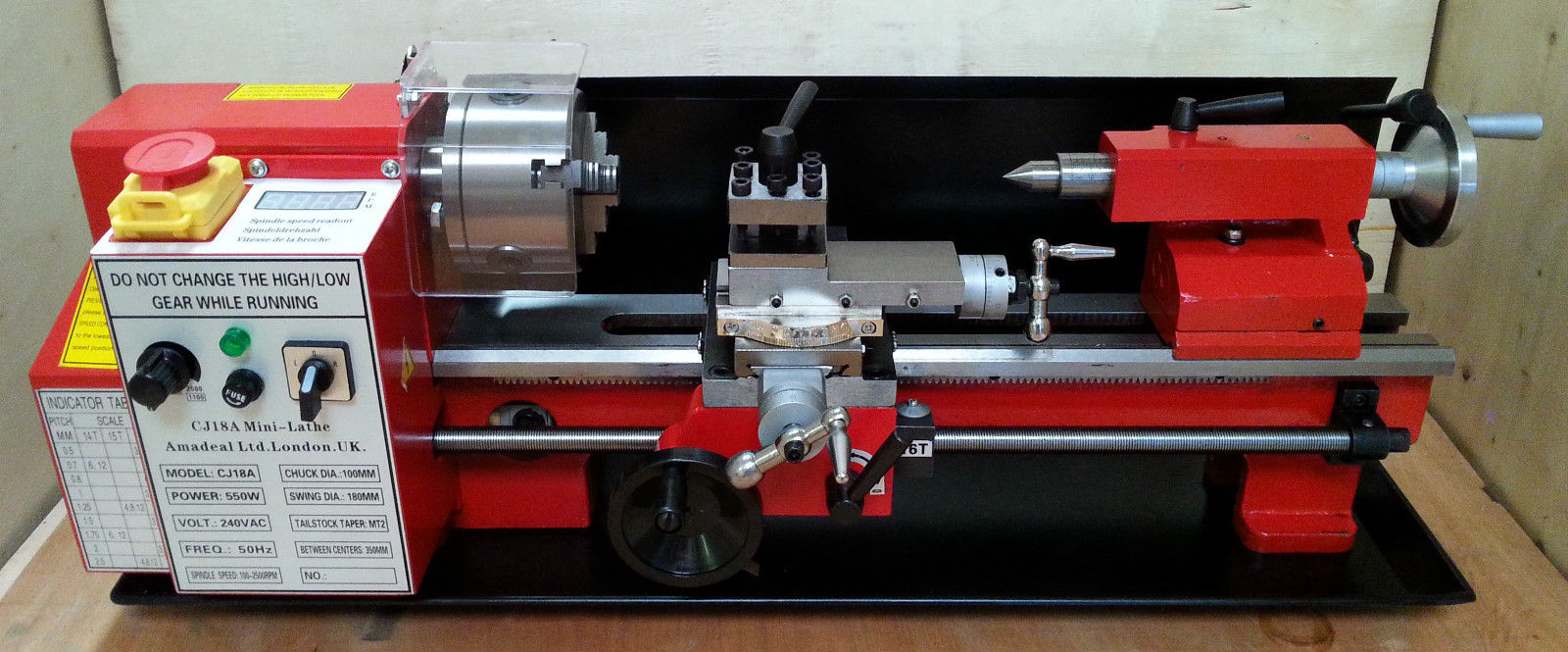

CJ18A Mini Lathe Red Package 4 - Brand New 7x14 Machine with DRO & 4" Chuck

Amadeal's hugely successful CJ18A mini lathe with an Accessory Package

Perfect for anyone setting up a workshop from scratch or if you're new to the hobby of metalwork

as we've included the main items purchased by our many customers.

*****

This listing includes the following accessories:

Fixed and Travelling Steadies, Live Centre, Quick Change Tool Post, Tailstock chuck with MT2 arbor

100mm 4 Jaw Independent Chuck, 160mm face plate, 7 Piece Indexable Chrome TiN lathe tools (High Quality) &

4pc Engineers Measuring Kit (including caliper and outside micrometer)


*****

The Amadeal CJ18A 7x14 Mini-lathe - Top Spec - Lowest Price

*****Now fitted with carriage lock*****

Call on 0208 558 4615 (10-5pm) for further details of this top spec machine

We have sold 100's of these, in fact well over 3000 - they are such great value for money.

N.B. 100mm (4") CHUCK FITTED AS STANDARD - 100mm SPINDLE PLATE - NO ADAPTER PLATE NEEDED.

This machine is by far-and-away the best spec mini-lathe for the money

- fully guaranteed and every single spare part stocked.

****** A GENUINE BARGAIN PRICE ***** With 4inch Spindle Plate as standard with 4inch (100mm) 3-jaw self-centering Chuck*****

***** 350mm Between Centres ***** 550W Motor ***** Digital Readout of the spindle speed ***** Tailstock lever lock *****

Brand new stock from manufacturer - Ideal for the professional engineer or model maker alike -

This is a superb lathe at a bargain price!

I have a range of accessories to go with this lathe at discount prices.

With this lathe you will get a superb workhorse, a guarantee and a full after sales service.

***** Can be viewed and collected from my east London premises *****

Contact me for further details through 0208 558 4615 (10-5pm)



The main specifications are:

Power 550W
Distance between centres : 350mm
Swing Over Bed: 180mm
Swing Over Cross Slide: 110mm
Taper: MT3
Tailstock Taper: MT2
Chuck diameter: 100mm
Spindle Speed: 50 - 2500rpm
Spindle Bore: 20mm
Cross slide Travel: 65mm
Chuck diameter 100mm (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks - no adapter plate required)
Range of Metric Threads: 0.5 - 2.5mm.
Range of Imperial Threads: 12 - 52 TPI.
Spindle Accuracy: 0.01mm.
Size with packaging is L: 81cm W: 30.5cm H: 31.5cm
Operating instructions enclosed.
American circuit board
180v DC motor
Actual dimensions of lathe - 77 x 32 x 29cm
Net weight/Gross weight : 42/45Kg.
Includes dead centre, set of external jaws, tray, rear splash guard, set of hex keys, spanner, oil can.
Several other accessories available
240V (plugs into UK domestic ring main)
