Amadeal High Precision HV 6" Rotary Table + Dividing Plate & Tailstock

Amadeal High Precision HV 6" Rotary Table With Dividing Plate & Tailstock

From Amadeal of London

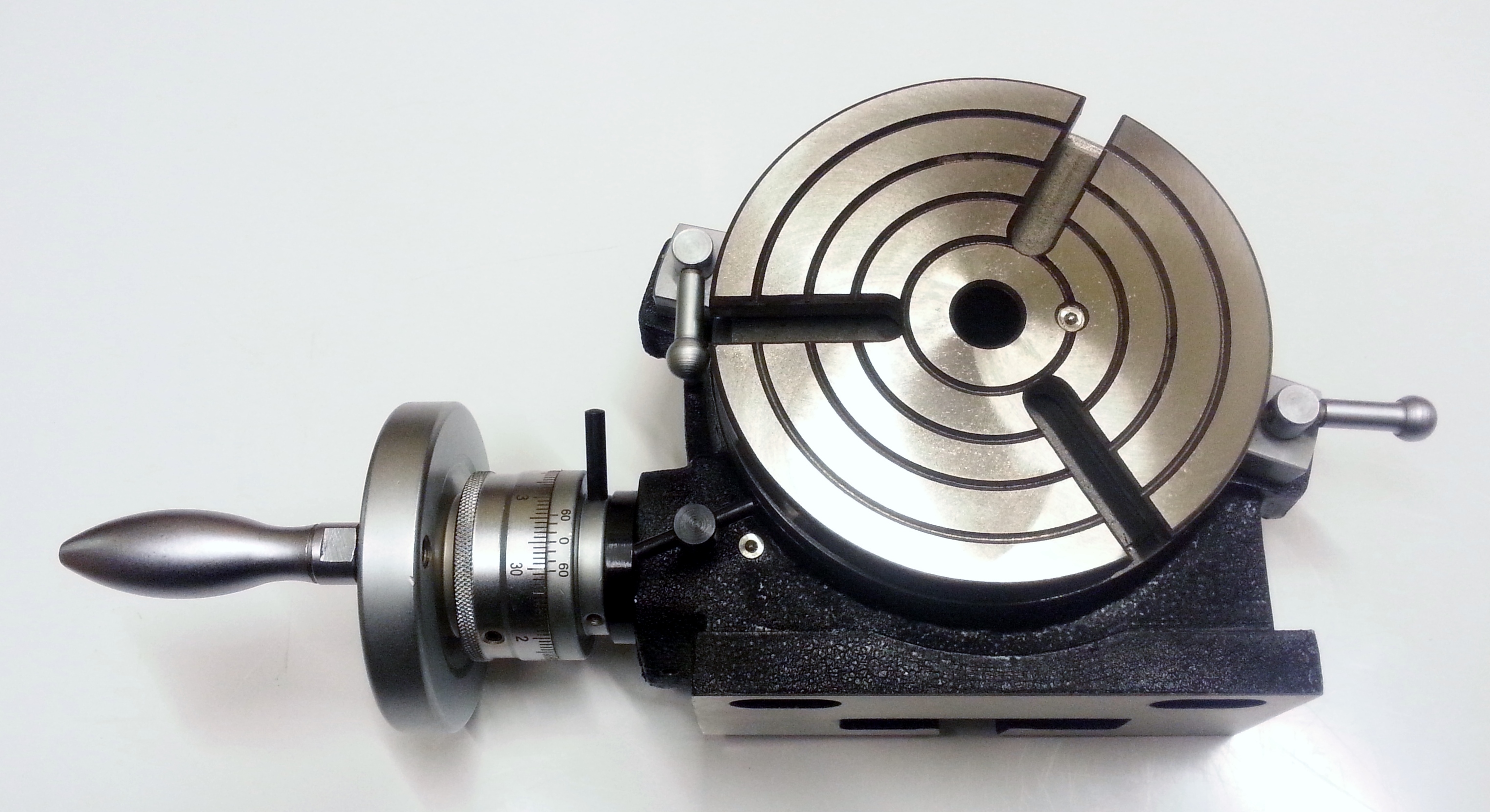

This is a high quality - low cost, 6" Horizontal & Vertical Rotary Table for work that requires a high degree of accuracy and precision.
It includes a matching Tailstock and Dividing plate set!

Rotary Table Features:

Table Diameter : 150 mm (6")
Table Height: 80 mm (3 -1/4")
Centre Height in Vertical Position: 105 mm
Worm Gear Ratio - 1:90, which means that 1 handle rotation turns the table by 4 Degrees
Centre Bore of the Table MT2
Table Graduated 360 Degrees. Handwheel graduated in seconds
Vernier scale is calibrated to 10 seconds
2 Oiling Points for a direct lubrication of the Table for longer life & better performance
Can be clamped in Horizontal as well Vertical Position

Tailstock Features:

Very Robust Quality Item in Cast Iron
Qualty Tailstock suitable for HV4, HV5 and HV6 RotaryTables
Maximum Centre Height: 105mm
Minimum Centre Height: 80mm
Base dimension 135mm x 90mm

Dividing Plates Features:

Set of 3 dividing plates designed to fit our HV4 & HV6 rotary tables
Centre hole of the plate is 21 mm
Number of holes in each plate:
Plate A- 15, 16, 17, 18, 19, 20
Plate B- 21, 23, 27, 29, 31, 33
Plate C- 37, 39, 41, 47, 49
It is supplied with a brass stopper key, Bracket, Crank Handle & fixing screws
