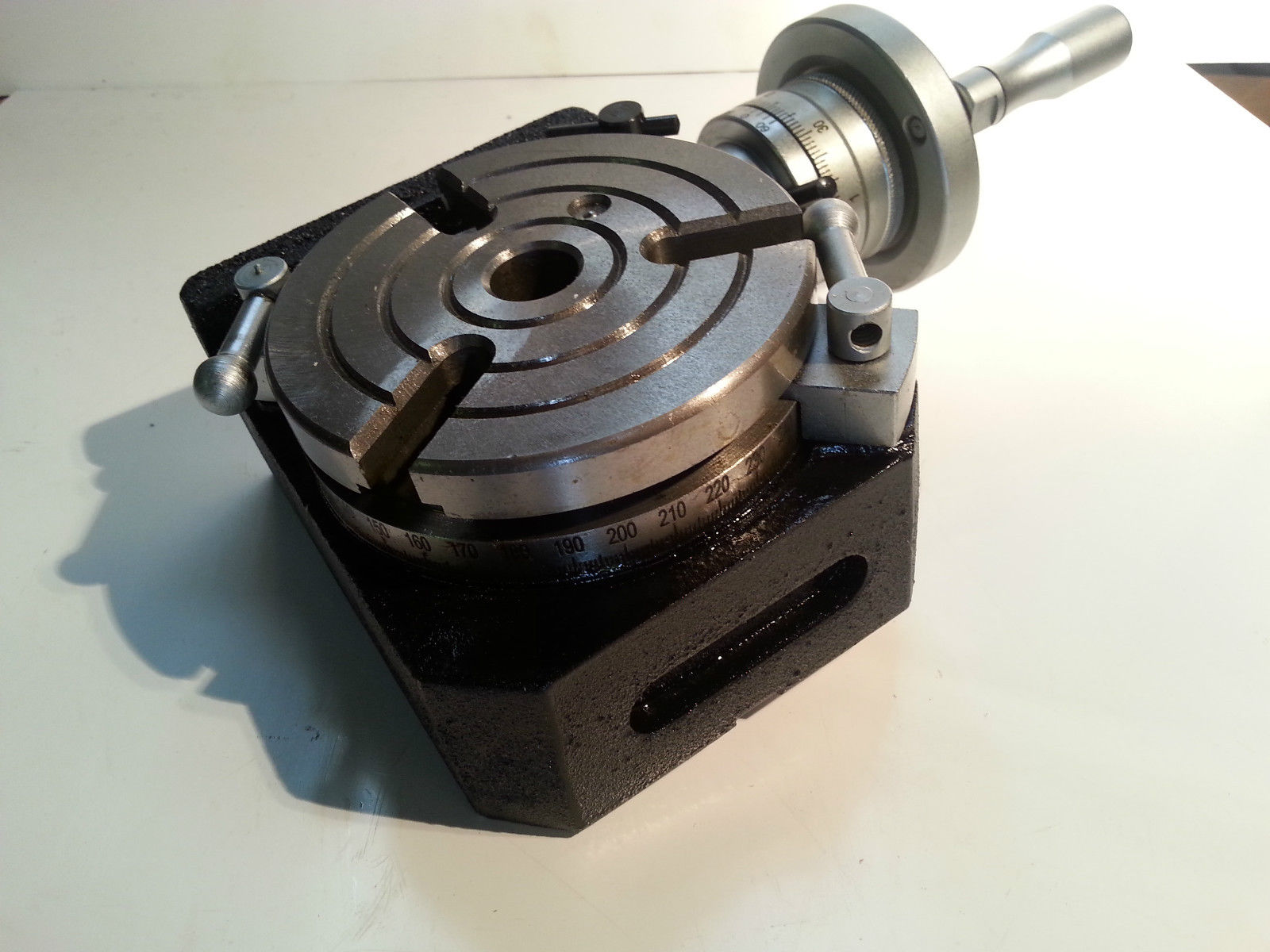

Amadeal High Precision HV 4" Rotary Table

Amadeal High Precision HV 4" Rotary Table

From Amadeal of London

This is a high quality - low cost, 4" Horizontal & Vertical Rotary Table for work that requires a high degree of accuracy and precision.

Features:

Worm wheel: cast iron

•Table Diameter : 110 mm (4-3/8")

•Table Height: 80 mm (3 -1/8")

•Worm Gear Ratio - 1:90, which means that 1 handle rotation shall turn the table by 4 Degrees.

•Centre Bore of the Table MT2

•Table Graduated 360 Degrees. Handwheel graduated in seconds.

•Vernier scale is calibrated to 10 seconds.

•2 Oiling Points for a direct lubrication of the Table for longer life & better performance.

•Can be clamped in Horizontal as well Vertical Position.
