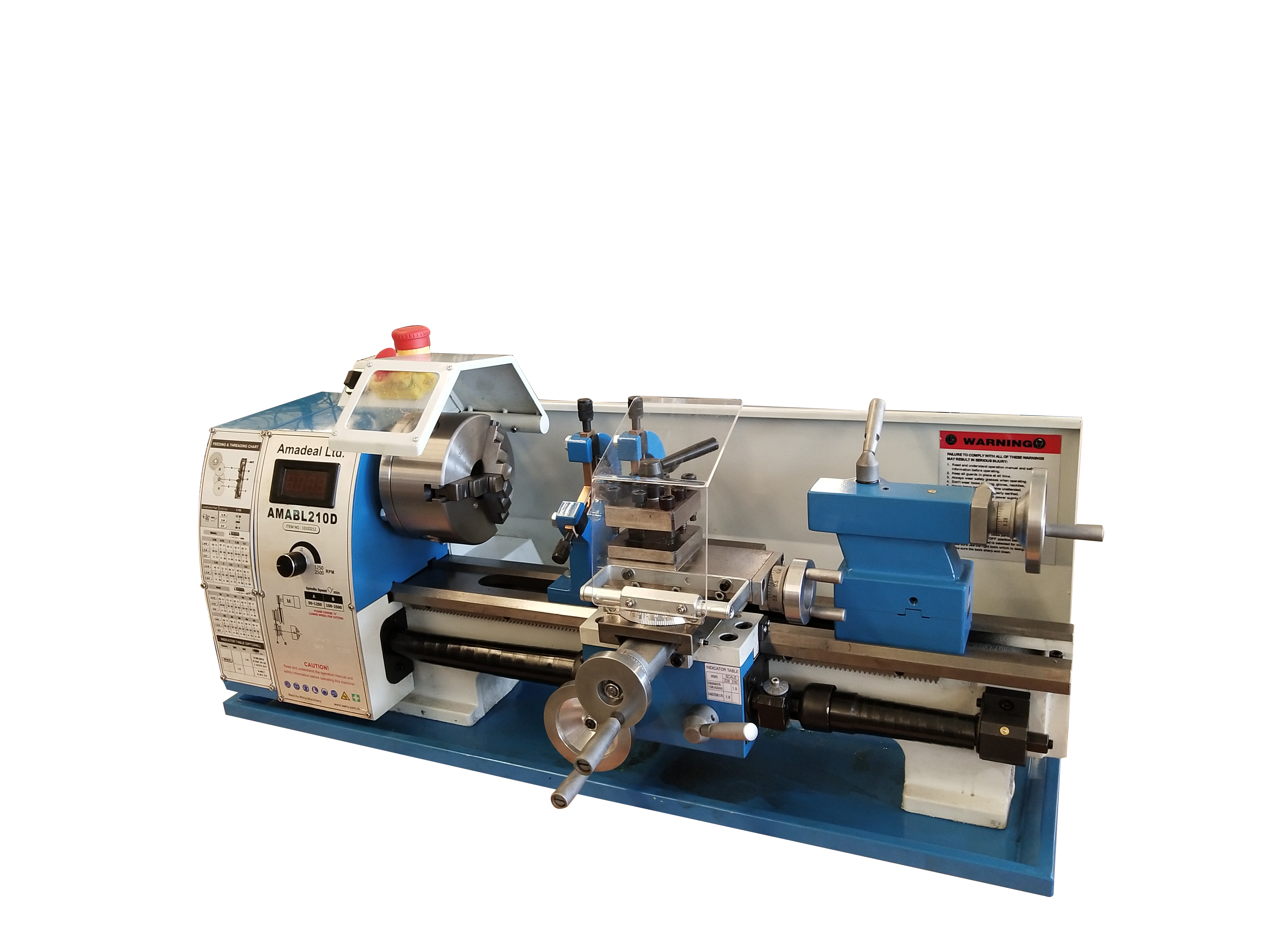

Amadeal AMABL210D BRUSHLESS MOTOR 8x16- LARGE 38mm spindle bore

**BRUSHLESS MOTOR + LARGE BORE**

Most popular,widely useful hobby lathe.
V-way bed is hardened and precision ground.
Spindle is supported by precision tapered roller bearing.
High precision chuck.
Power longitudinal feed allows threading.
Adjustable gibs for slideways.
Thead cutting.
Reverse (left-hand) thread cutting possible with modification.
Tailstock may be offset for turning tapers.
Easy to change speed by gears.
Tolerance test certificate, test flow chart included.

SPECIFICATION:

Capacities:
Swing over bed: 210mm
Swing over cross slide: 110mm
Distance between centres: 400mm
Width of bed: 100mm

Headstock:
Hole through spindle: 38mm
Taper in spindle nose: MT5
Number of spindle speeds: Variable
Range of spindle speeds: 50-2500RPM

Feeding and Threading:
Number of metric threads: 10
Range of metric threads: 0.5~3.5mm
Number of imperial threads: 10
Range of imperial threads: 10~44 T.P.I
Range of longitudinal feed: 0.1~0.20mm

Compound and carriage:
Tool post type: 4-way
Maximum compound slide travel: 55mm
Maximum cross slide travel: 75mm
Maximum carriage travel: 276mm

Tailstock:
Tailstock spindle travel: 60mm
Taper in tailstock spindle: MT2

MAIN MOTOR: 1.1KW, 220V/1Ph/50hz
DIMENSION:-
Length:820mm
Width: 390mm
Height: 370mm
Weight: 65Kg

INCLUDED ACCESSORIES

125mm CHUCK
Splash guard 1pc
Chip tray 1pc
Toolbox&tools:1 set Includes Metal change gears(72T,70T,66T,60T,52T,50T,40T,33T,24T)
Speed counter 1 Set
