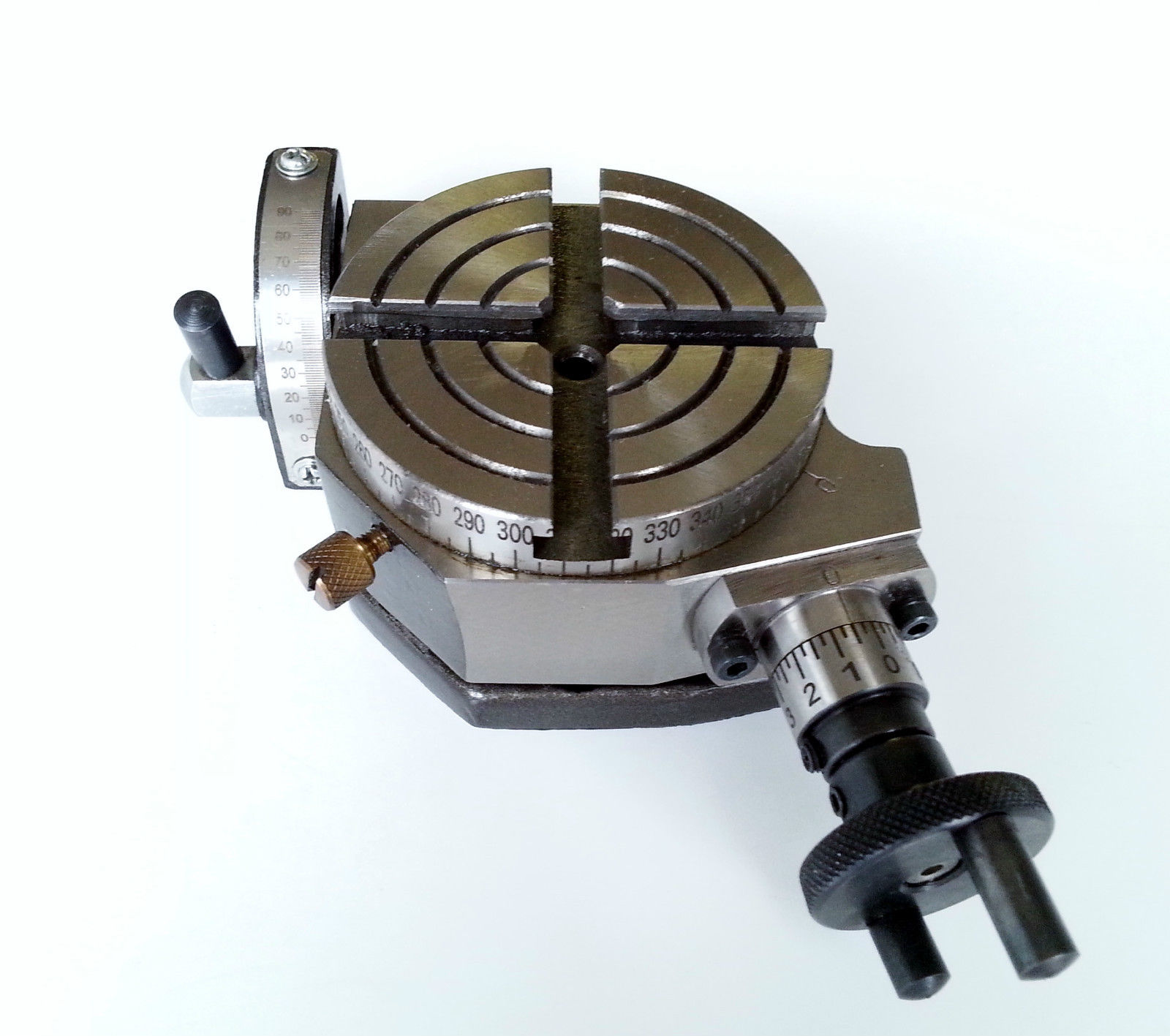

Amadeal 80mm (3") Tilting Rotary Table

Amadeal 80mm (3") Tilting Rotary Table

Features to tilts between 0- 90 Degrees & can be locked at any position.
Table diameter 80mm
Table is graduated 360 Degrees.
Worm Gear Ratio -1:36, which means that 1 handle rotation turns the table by 10 Degrees.
Centre Height in vertical position: 58mm
The table is graduated 0-360 degrees in 5 degree divisions
The handle is graduated 0-10 degrees in 5 minute divisions
Can be mounted both in Horizontal & vertical position


Base: 100mm x 95mm
Overall height when horizontal: 54mm
Weight: 2.25Kg
