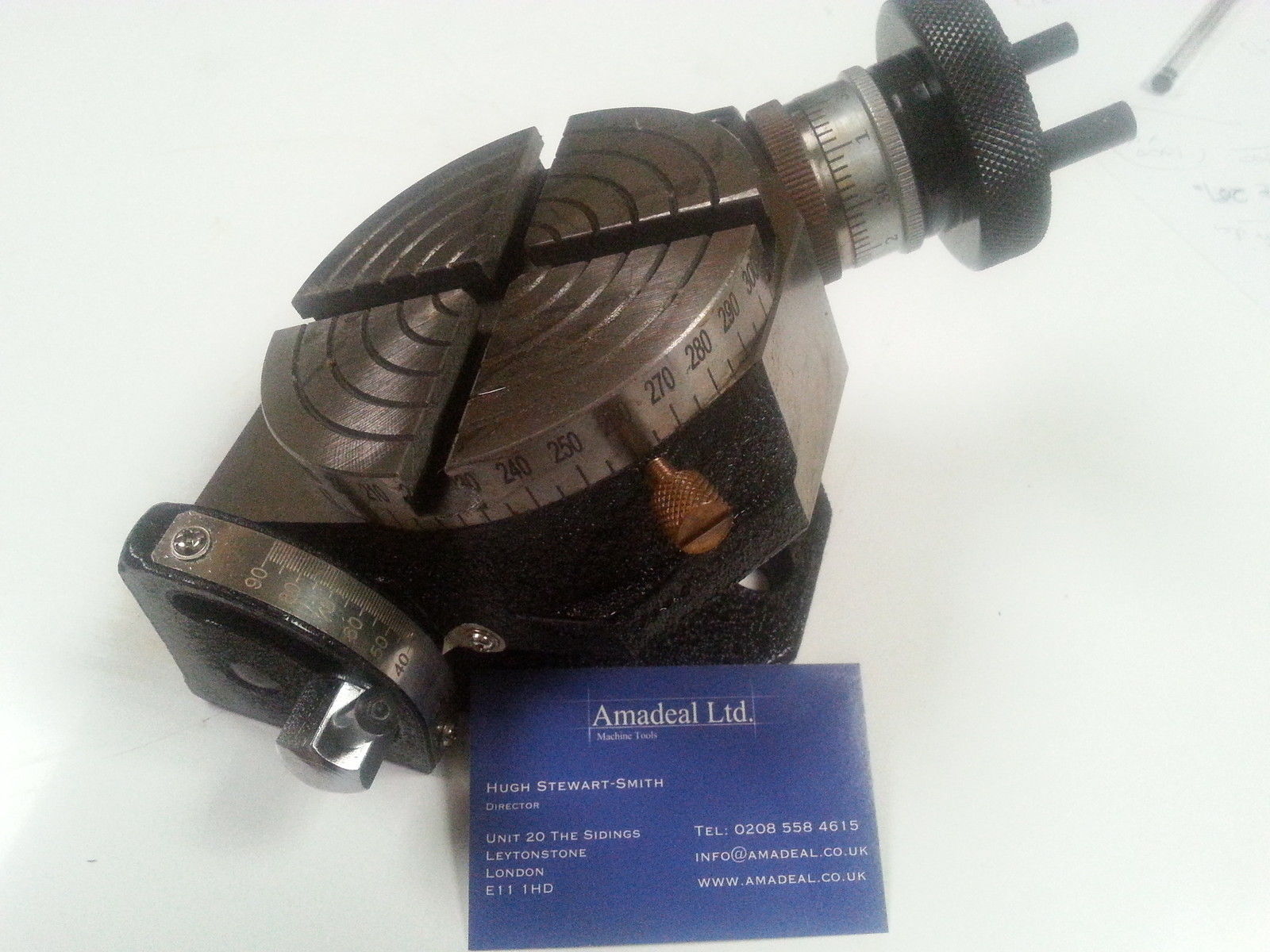

Amadeal 100mm (4") Tilting Rotary Table

Amadeal 100mm (4") Tilting Rotary Table

Features to tilts between 0- 90 Degrees & can be locked at any position.
Table diameter 100 mm
Table is graduated 360 Degrees.
Worm Gear Ratio -1:36, which means that the 1 handle rotation turns the table by 10 Degrees.
Centre Height in vertical position: 2-5/8" (66 mm approx)
Hand wheel is graduated in divisions of 10 min & can be set to zero.
Can be mounted both in Horizontal & vertical position

Base: 140MM X 115MM

Overall height when horizontal - 68mm

Gross/Net Weight 5.59/4.98Kg.
